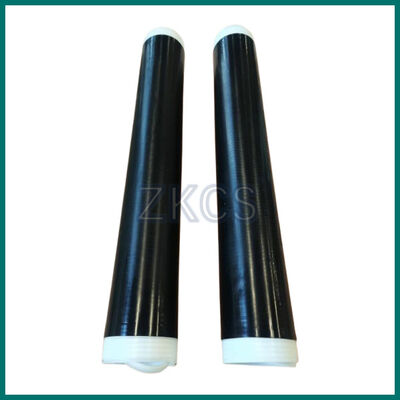

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables
Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

ภาพใหญ่ :  Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: ZKCS
ได้รับการรับรอง: ROHS
หมายเลขรุ่น: ปรับแต่ง
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1,000 ชิ้น
ราคา: โปร่ง
รายละเอียดการบรรจุ: 50 ชิ้นหรือ 100 ชิ้น / กล่อง
เวลาการส่งมอบ: 20-30days หลังจากได้รับเงินมัดจำ 40%
เงื่อนไขการชำระเงิน: แอล/C,ที/ที
สามารถในการผลิต: 100,000 ชิ้น / เดือน

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

ลักษณะ
วัสดุ: ซิลิโคน สี: สีดำหรือสีเทา
ความยาว: ปรับแต่ง ชื่อ: ท่อหดเย็น
แอปพลิเคชัน: การป้องกันฉนวน ชื่อสินค้า: ท่อยางหดเย็นสำหรับฉนวนลวด
การบรรจุ: กล่องกระดาษ ตัวอย่างฟรี: ใช่
เน้น:

Long-Term Reliable Insulation

,

All-Weather Performance

,

Outdoor Cable Protection

Product name:

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables


Description:
Equivalent 3M quality Insulation Cold Shrink Splice Sleeves are designed for single and multicore low voltage power cables. the silicone tube shrinks uniformly to form a tight, permanent seal. Its premium silicone material ensures stable performance against moisture, UV exposure, temperature changes, and environmental aging.


Features :
Ideal solution for abandoning cables temporarily or permanently
• Provides environmental sealing and mechanical protection
• Heat and special tools not required
• Simple reliable installation


Applications

  • Outdoor power cable insulation

  • Telecom and fiber optic cable sealing

  • Cable joints, terminals, and connectors

  • Utility, infrastructure, and industrial installations

Picture for your reference.

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 0

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 1

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 2


Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 3

Introduction:


Equivalent 3M quality Insulation Cold Shrink Splice Sleeve are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.


Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5
2 Tensile strength GB/T 528-2009 Mpa 8±3
3 Break elongation GB/T 528-2009 % 800±200
4 Tear strength GB/T 529-2008 kN/mm 38±5
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013
6 dielectric strength GB/T 1695-2005 MV/m ≥18
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8
